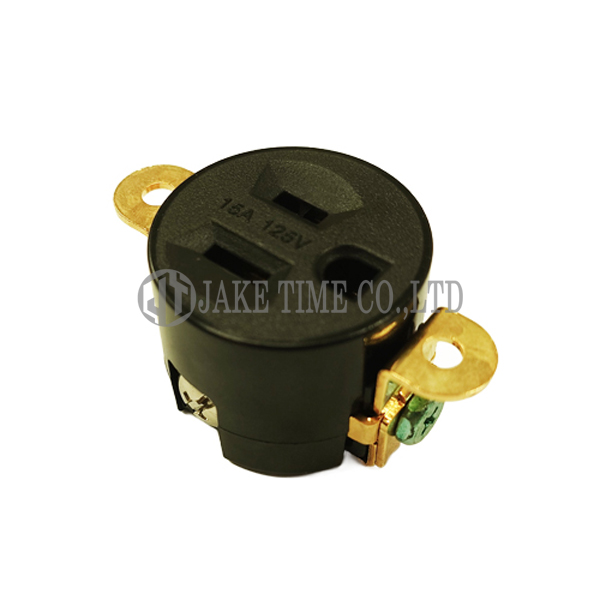

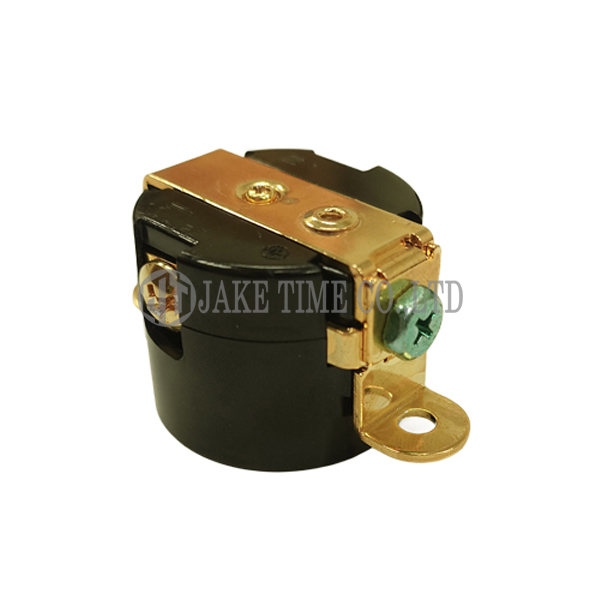

Audio Grade Hi-Fi AC Single Receptacle NEMA 5-15R Black, Gold Plated

Specifications
• Product NO : JT-515URV-22
• Standard : NEMA 5-15R
• Rated Standard : AC 125V/15A
• Fire Rating : UL 94V-0~2
• All Screw Material : Stainless Steel 304 Gold Plated or Stainless Natural Color
• Terminal Material : Brass or Phosphor Bronze Plating Gold
Availability:
Quantity:
  • JT-515URV-22

  • JAKE TIME or OEM

Product Item : JT-515URV-22
NEMA Configuration : NEMA 5-15R
Poles : 2 Pole
Wires : 3 Wire Grounding
Rated Standard : AC 125V/15A
Dielectric Voltage : 1250V AC/1 minute
Insulation Resistance : 100MΩ at 500V DC
Fire Rating : UL 94V-0~2
Environmental Certification : RoHS approved
Terminal Material (optional) : Brass or Phosphor Bronze
Plating (optional) : Gold, Rhodium and Silver
Manufacture : Made in Taiwan
Delivery Way - Date Of Delivery : Depend on your order
Sales Method : Export, Manufacture
Packaging Method : 200pcs Per Packing
Payment Terms : T/T
Previous:
Next:

Jake Time Co., Ltd.

Our company was established in 1994. Specially produce. Buy and sell. All kinds of sockets. Plug. Switch. Especially to NEMA series. Been strengthening all the time. Research and development. Manufacture. Obtain the authentication of UL and CUL. Accord with ROSH standard..
