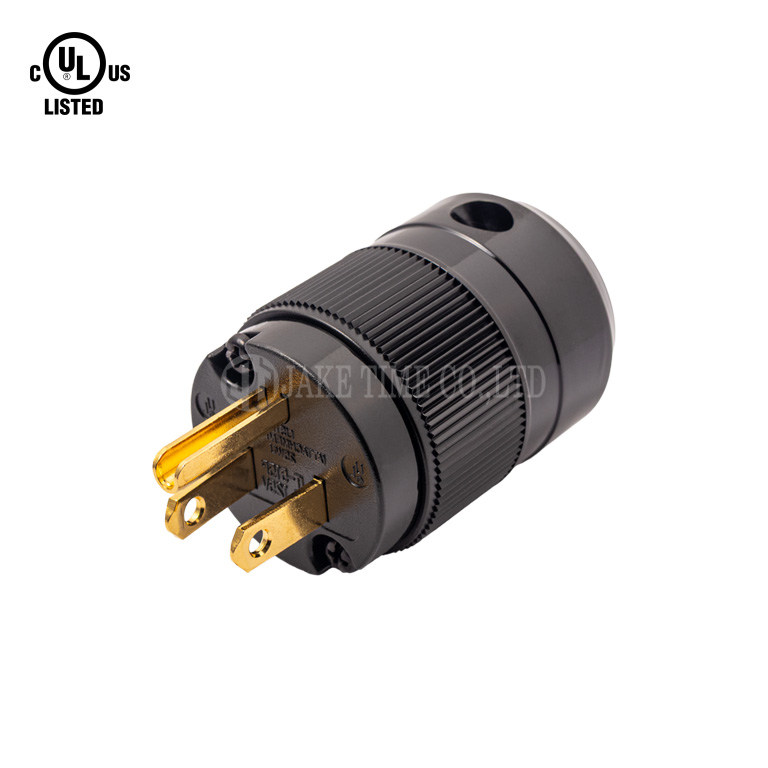

JT-515PS
JAKE TIME

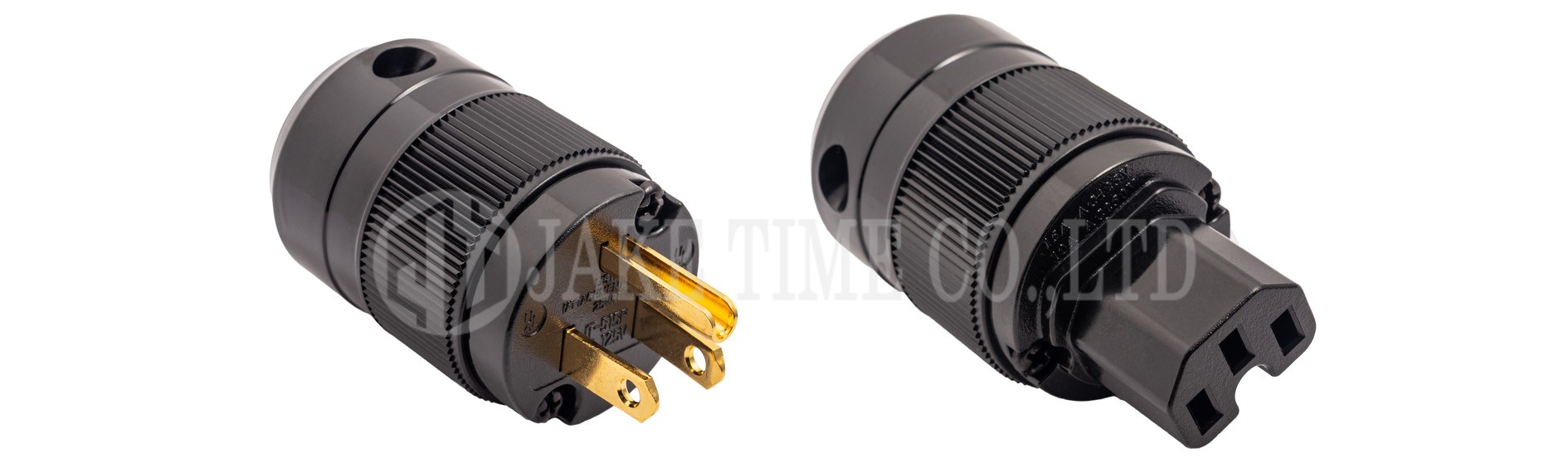

Jake Time Brand Entry-Level Audio Products
☆ Single-Specification Gold-Plated Brass Terminals
This series features single-specification gold-plated brass terminals with excellent corrosion resistance, making them especially suitable for environments that require long-term stable operation. Through a precision gold-plating process, conductivity is enhanced while oxidation resistance is significantly improved, ensuring stable, loss-free signal transmission over time. Its high conductivity helps accurately reproduce audio details, delivering clear and bright sound performance with outstanding cost-effectiveness.
☆ High Flame-Retardant PC Housing
The entry-level series uses high flame-retardant PC (Polycarbonate) as the housing material, which is widely applied in high-end electronics and industrial fields. It offers exceptional impact strength and excellent heat resistance, achieving a strong balance between rigidity and toughness. Even under demanding conditions, it maintains a stable and durable structure. The material also provides excellent electrical insulation, effectively ensuring safe power transmission, while its superior impact resistance further enhances the product’s durability and reliability.
☆ Professional Black Housing Design
The black housing design presents a low-profile, professional, and premium visual style. Its classic color easily blends into a wide range of application environments, making it ideal for both commercial audio systems and professional equipment, while enhancing the overall product image and installation aesthetics. It supports a maximum cable outer diameter of Ø17 mm, providing greater installation flexibility.
☆ US Standard Plug Design with UL Compliance
This series is designed with a US standard male plug, compliant with UL certification requirements in the United States, making it suitable for high-power audio equipment. While ensuring safe operation, it also delivers stable and excellent audio performance, meeting the needs of both professional and high-end applications.
| Product Item : | JT-515PS |
| NEMA Configuration : | NEMA 5-15P |
| Poles : | 2 Pole |
| Wires : | 3 Wire Grounding |
| Rated Standard : | AC 125V/15A |
| Dielectric Voltage : | 1250V AC/1 minute |
| Insulation Resistance : | 100MΩ at 500V DC |
| Fire Rating : | UL 94V-0~2 |
| Safety Certification : | UL, CUL approved |
| Environmental Certification : | RoHS approved |
| Terminal Material (optional) : | Brass |
| Plating (optional) : | Gold |
| Manufacture : | Made in Taiwan |
| Delivery Way - Date Of Delivery : | Depend on your order |
| Maximum Diameter Of Cable : | 17mm |
| Sales Method : | Export, Manufacture |
| Packaging Method : | 200pcs Per Packing |
| Payment Terms : | T/T |
