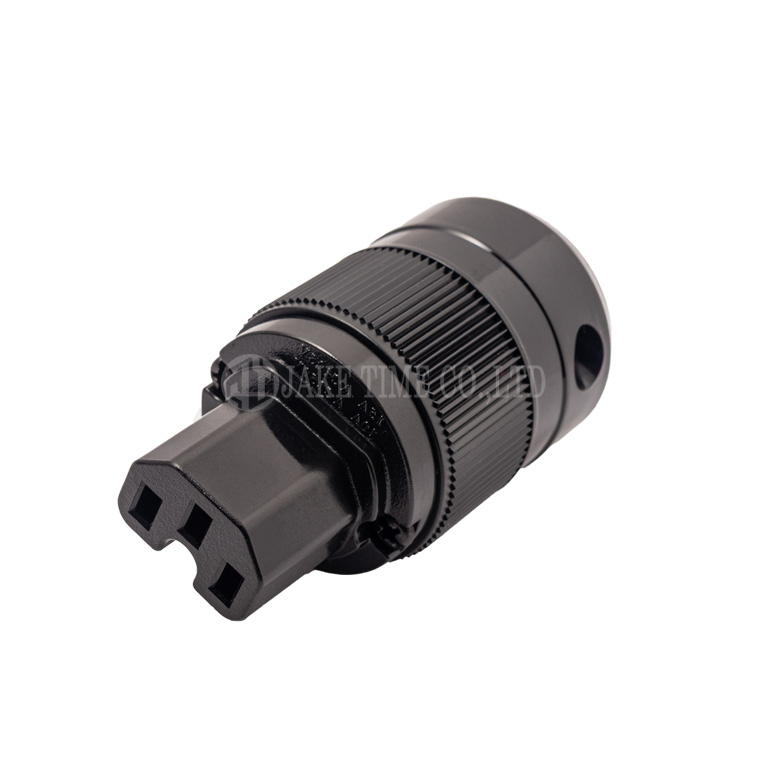

Audio Grade Hi-Fi Jake Time Brand IEC 60320 C15 Power Connector, Black, Gold Plated, Cable Maximum 17mm

Specifications
• Product NO : JT-C15RS
• Standard : IEC 60320 C15
• Rated Standard : AC 250V/10A
• Fire Rating : UL 94V-0~2
• Terminal Material : Brass Plating Gold
• Maximum Diameter Of Cable : 17mm
Availability:
Quantity:
  • JT-C15RS

  • JAKE TIME


Jake Time Brand Entry-Level Audio Products


☆ Single-Specification Gold-Plated Brass Terminals

This series features single-specification gold-plated brass terminals with excellent corrosion resistance, making them especially suitable for environments that require long-term stable operation. Through a precision gold-plating process, conductivity is enhanced while oxidation resistance is significantly improved, ensuring stable, loss-free signal transmission over time. Its high conductivity helps accurately reproduce audio details, delivering clear and bright sound performance with outstanding cost-effectiveness.


☆ High Flame-Retardant PC Housing

The entry-level series uses high flame-retardant PC (Polycarbonate) as the housing material, which is widely applied in high-end electronics and industrial fields. It offers exceptional impact strength and excellent heat resistance, achieving a strong balance between rigidity and toughness. Even under demanding conditions, it maintains a stable and durable structure. The material also provides excellent electrical insulation, effectively ensuring safe power transmission, while its superior impact resistance further enhances the product’s durability and reliability.


☆ Professional Black Housing Design

The black housing design presents a low-profile, professional, and premium visual style. Its classic color easily blends into a wide range of application environments, making it ideal for both commercial audio systems and professional equipment, while enhancing the overall product image and installation aesthetics. It supports a maximum cable outer diameter of Ø17 mm, providing greater installation flexibility.


☆ US Standard Plug Design with UL Compliance

This series is designed with a US standard male plug, compliant with UL certification requirements in the United States, making it suitable for high-power audio equipment. While ensuring safe operation, it also delivers stable and excellent audio performance, meeting the needs of both professional and high-end applications.

Product Item : JT-C15RS
Global Standard : IEC 60320 C15
Poles : 2 Pole
Wires : 3 Wire Grounding
Rated Standard : AC 250V/10A
Dielectric Voltage : 1250V AC/1 minute
Insulation Resistance : 100MΩ at 500V DC
Fire Rating : UL 94V-0~2
Environmental Certification : RoHS approved
Terminal Material : Brass
Plating : Gold
Manufacture : Made in Taiwan
Delivery Way - Date Of Delivery : Depend on your order
Maximum Diameter Of Cable : 17mm
Sales Method : Export, Manufacture
Packaging Method : 200pcs Per Packing
Payment Terms : T/T
