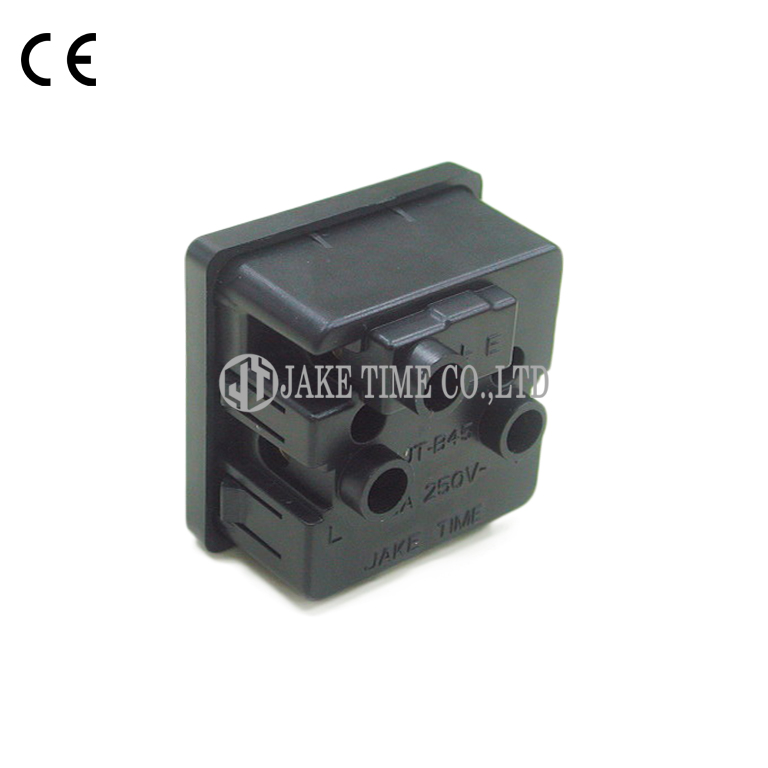

BS1363 Power Socket, 1U 45mm*45mm, UK/European (Server Rack/Rackmount Power Outlet)

Specifications
• Product NO : JT-B45
• Standard : UK BS1363 (British Standard)
• Rated Standard : AC 250V/13A
• Fire Rating : UL 94V-0~2
• Installation Method : "SNAP-IN" Panel Cut Out
• Connection Ways : Screws Fixed
• Size : 45mm x 45mm use for 1U Rack Mount PDU Power Strip
• Get certified to CE
Availability:
Quantity:
  • JT-B45

  • JAKE TIME

Product Item : JT-B45
Global Standard : UK BS1363 (British Standard)
Poles : 2 Pole
Wires : 3 Wire Grounding
Rated Standard : AC 250V/13A
Dielectric Voltage : 1250V AC/1 minute
Insulation Resistance : 100MΩ at 500V DC
Fire Rating : UL 94V-0~2
Safety Certification : CE approved
Environmental Certification : RoHS approved
Manufacture : Made in Taiwan
Delivery Way - Date Of Delivery : Depend on your order
Sales Method : Export, Manufacture
Packaging Method : 500pcs Per Packing
Payment Terms : T/T
